THE MOST ADVANCED
IMAGE ANALYSIS SOLUTION

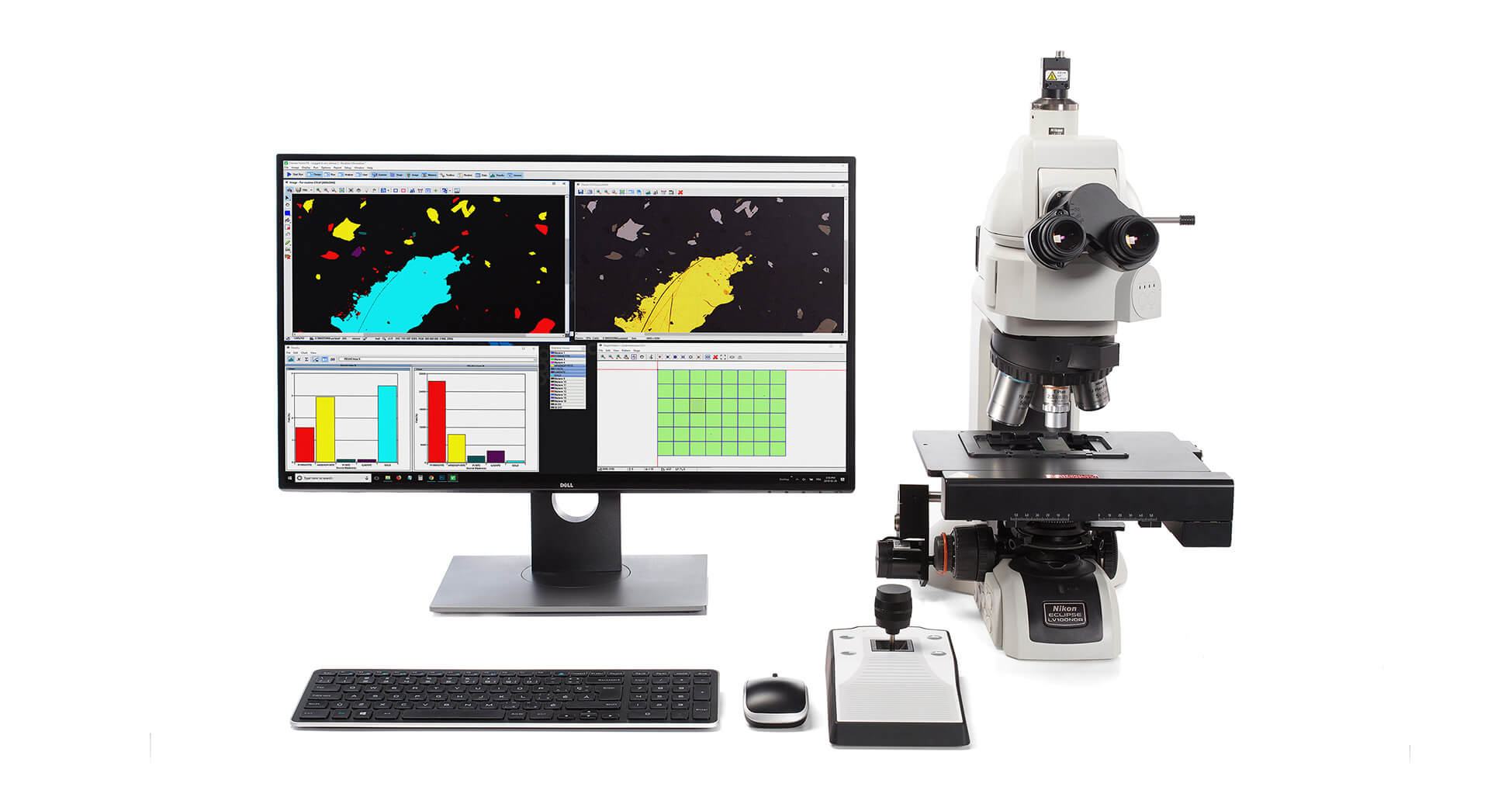

Clemex Vision is a fully integrated system for labs seeking traceable, repeatable, and accurate results. This is our most powerful automated image analysis system. It includes a great range of computer vision functions, catering for various applications in industry and research. Our image analysis software is exceptionally flexible, allowing for any number of distinct routines to be run on the same system. These routines come packaged as a library of existing applications or can be developed by our application specialists.

APPLICATION PACKAGES

Custom Image Analysis | Clemex

GRAIN SIZE ANALYSIS

Custom Image Analysis | Clemex

LAYER THICKNESS

Custom Image Analysis | Clemex

PHASE ANALYSIS

Custom Image Analysis | Clemex

PARTICLE SIZE

STANDARDS

  • ASME B46.1
    Surface Texture (Surface Roughness, Waviness, and Lay)
  • ASTM A247
    Microstructure of Graphite in Iron Castings
  • ASTM B487
    Measurement of Metal and Oxide Coating Thickness
  • ASTM E1077
    Depth of Decarburization of Steel Specimens
  • ASTM E112
    Average Grain Size
  • ASTM E1245
    Inclusion or Second-Phase Constituent Content of Metals
  • ASTM E1268
    Degree of Banding or Orientation of Microstructures
  • ASTM E562
    Volume Fraction by Systematic Manual Point Count
  • DIN 17230
    Ball and Roller Bearing Steels
  • ISO 945
    Microstructure of Cast Irons

KEY FEATURES OF CLEMEX VISION ANALYSIS SOFTWARE

Universal Grain size analysis

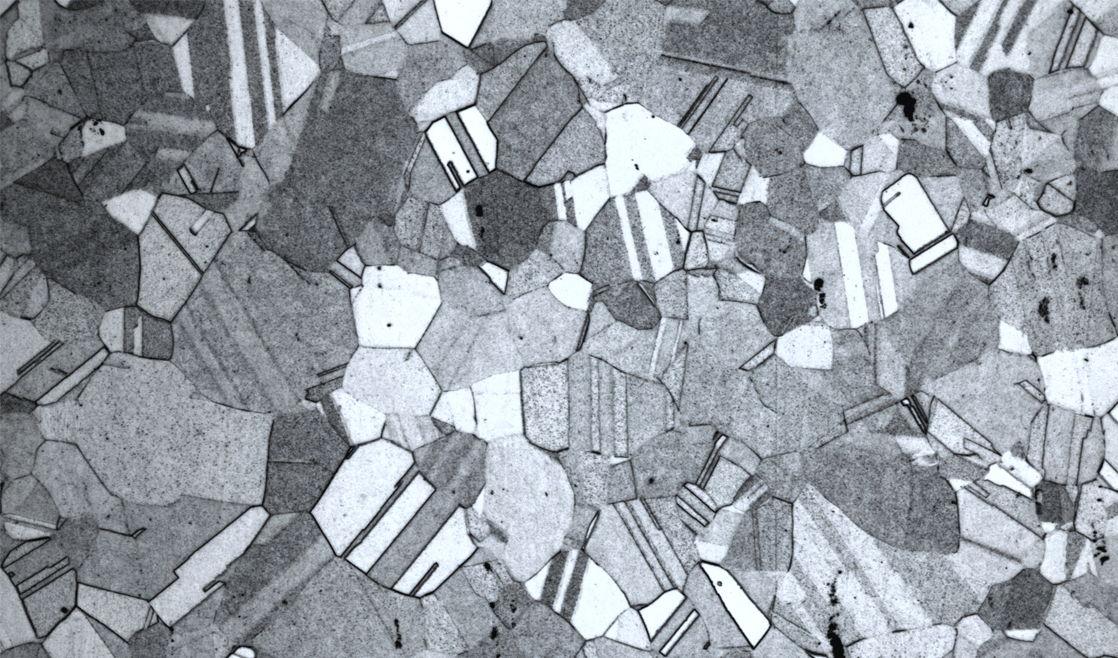

With the AI Plugin “GrainSeg”, segmenting even the most difficult images is fast and reliable. You can analyze copper alloys, austenitic steels or titanium alloys containing twins and it supports all methods of the ASTM-E112 standard.

CUSTOMIZE YOUR ANALYSIS

Detect, characterize and measure phases or objects of interest using our extensive instruction library. You can easily combine any set of instructions and create your own routine.

MARTENSITIC GRAIN SIZE INSTRUCTION

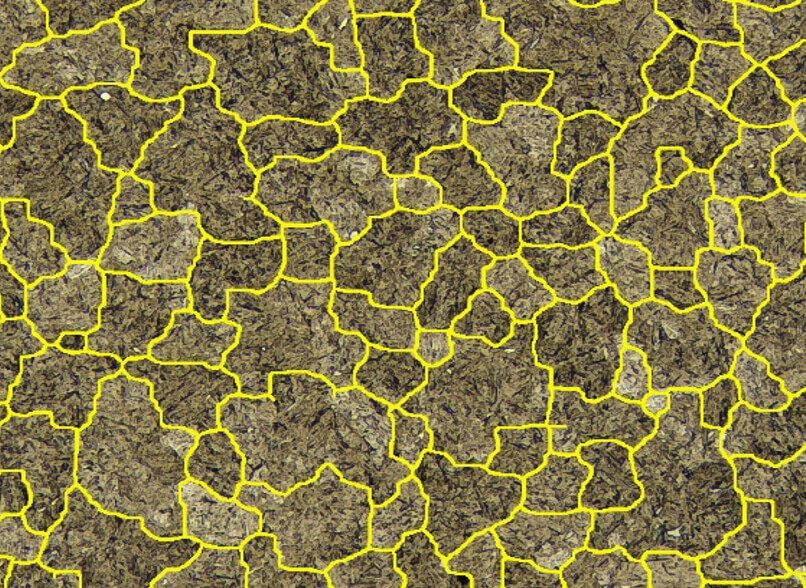

The powerful Martensitic functionality is inserted at the beginning of an automated image analysis routine to detect the boundaries of grains. Several parameters allow the user to fine-tune detection.

POWERFUL PROCESS AUTOMATION

Quicker analysis time is made possible with this robust software capable of processing thousands of images and generating data all day long without human intervention.

TRACEABLE DATA

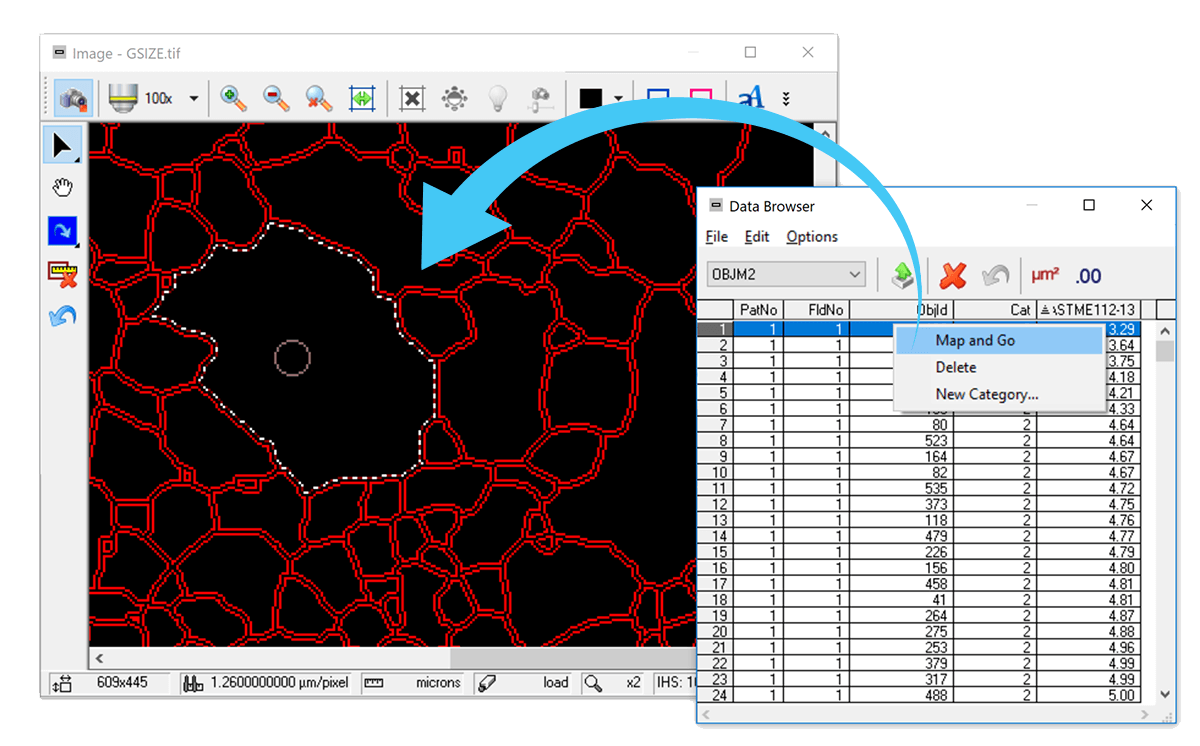

Validate detected features and delete artifacts across multiple fields using the Map and Go function. Object data in the built-in spreadsheet are dynamically linked to the actual position of the objects on the sample.

ANALYSIS PROPERTIES

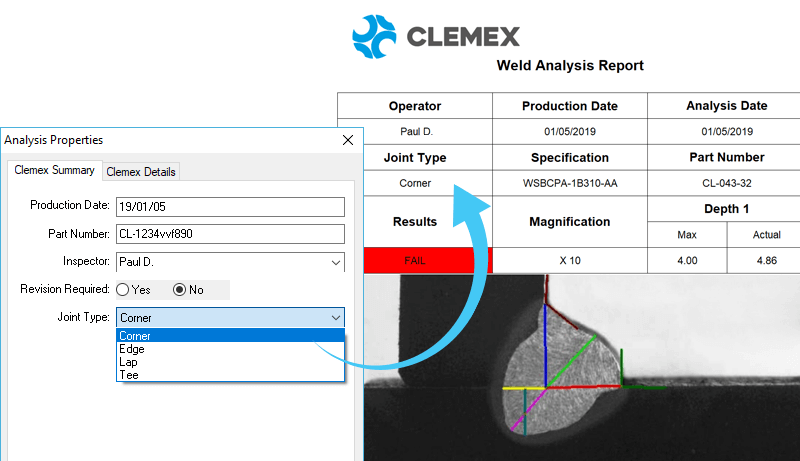

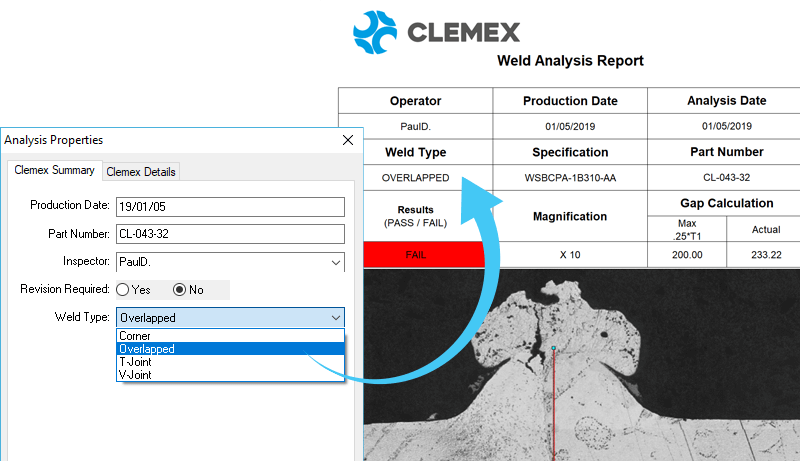

Information from property fields can be automatically inserted into reports, file names or folder names. Use standard properties such as Magnification, Date or Sample Name or create custom fields.

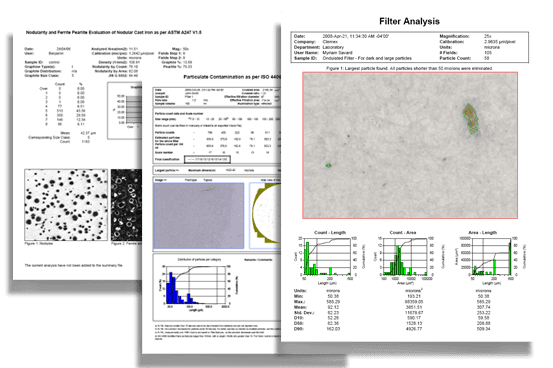

AUTOMATED REPORTING

Reports are generated automatically after each analysis and can be adapted to suit your needs. Add a company logo, images captured during analysis, graphs and statistics, and save your results as a csv, xlsx or pdf file.

MOSAIC IMAGE STITCHING

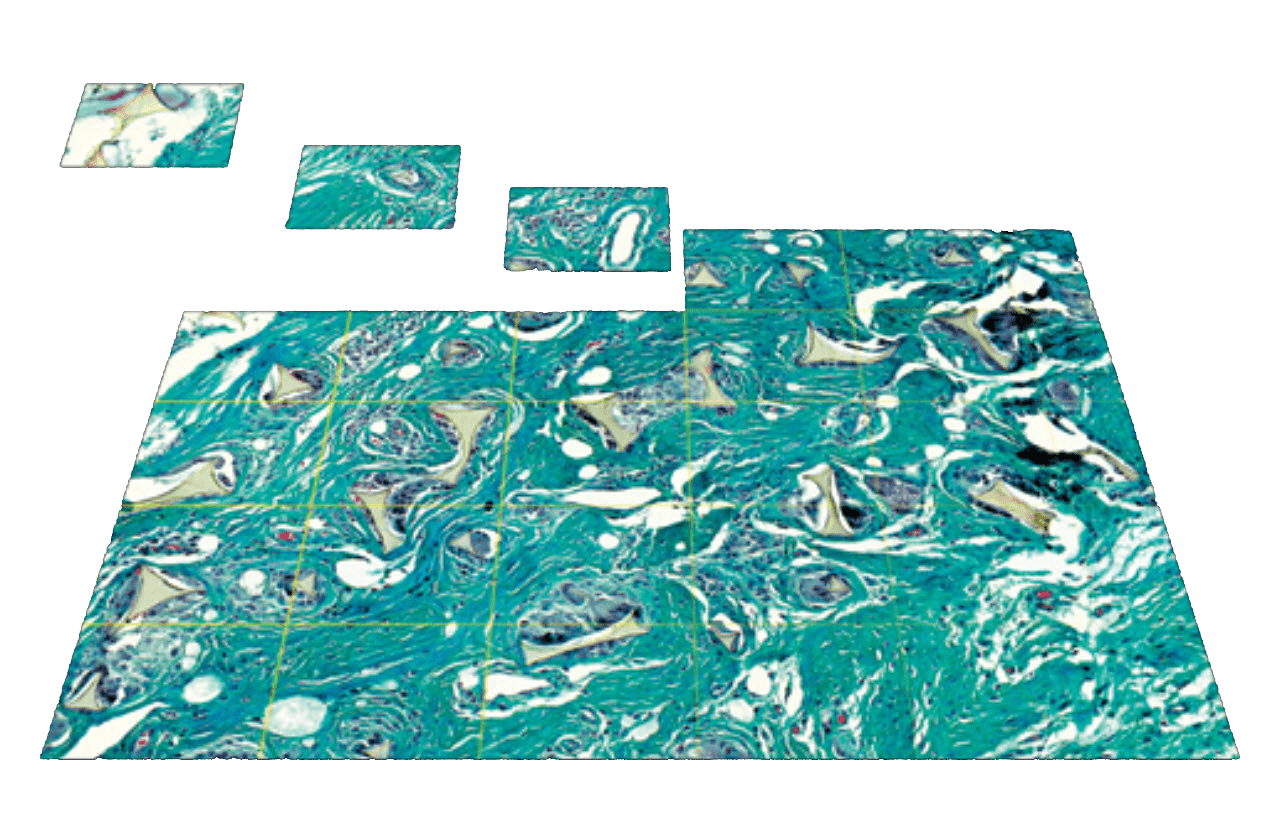

Clemex Vision software automatically stitches multiple fields to form a seamless composite image of the whole sample which can then be analyzed and saved. This function can be used with a manual or motorized stage.

CFR 21 PART 11 COMPLIANCE

With the User Management module, administrators can add users, create user groups, and trace events in the audit trail. This optional module allows electronic signature embedding and is secure and reliable.

MORE FEATURES

  • ACCURATE DETECTION
    Detect objects that are difficult to distinguish because of their their transparency, low contrast or faint outlines.
  • CLASSIFY OBJECTS
    Isolate objects using any measurement type (length, width, aspect ratio, roughness, etc.).
  • CONDITIONAL INSTRUCTIONS
    Analyze objects that meet certain criteria, such as size, shape or orientation.
  • DIRECT MEASURES & ANNOTATIONS
    Annotate your images on-the-fly during your analysis; include results and visuals in reports.
  • EXTENDED DEPTH OF FIELD
    Obtain a sharp composite image made up of several image slices, perfect for uneven surfaces.
  • EXTERNAL DEVICE CONTROL
    Activate external devices such as valves, locking devices, alarms, lights.
  • IMAGE OPTIMIZATION
    Shading correction, auto-exposure, white balance, auto-focus, parfocality and paraxiality for each magnification.
  • MOTORIZED STAGE CONTROL
    Controlled through the software, scanning regions can be defined using pre-built templates.
  • NIST-TRACEABLE CALIBRATION
    Eliminate operator subjectivity by automatically calibrating each lens using a NIST-traceable micrometer.
  • SEPARATE OBJECTS
    Separate adjacent objects automatically prior to performing measurements.
  • SCAN REGION AUTOMATION
    Automated stage pattern creation based on detected objects or sample reference points.
  • THIRD PARTY IMAGES
    Import images from various sources, such as SEMs or scanners.

SOFTWARE OPTIONS

VISION CORE

VISION LITE

CAPTIVA

Virtual Joystick for motorized stage + autofocus

Save & Export Measurements

autom.

autom.

man.

Save & Export Images

Manual Measurements & annotations

Report Generator

n/a

Unlimited Routines

limited tools

n/a

Automatic Measurements (field/ objects)

n/a

Custom Measurements (field/ objects)

n/a

Thresholding

+ processing

n/a

n/a

n/a

Advanced Operations

optional *

n/a

Automatic Transfer

optional *

n/a

optional

optional

n/a

optional

optional

n/a

optional

optional

n/a

optional

optional

n/a

* available together with one or more application modules

BUILD YOUR COMPLETE IMAGE ANALYSIS SOLUTION

Custom Image Analysis | Clemex

Typically an upright microscope, a motorized stage, and a high-resolution camera are selected to fit your specific image analysis needs. We ensure a seamless integration of all components.

  • Analysis of your needs by a technical representative
  • Configuration, fine-tuning, and calibration
  • On-site installation and training of your team
Custom Image Analysis | Clemex

Increase productivity in a high throughput lab using a very simple workflow. The operator follows a 3-step procedure to obtain repeatable results:

  • Position a sample on the stage
  • Start an analysis on the sample
  • Review data and export results

Custom Image Analysis | Clemex

CAMERAS

High resolution cameras to fit demanding optical imaging applications.



Custom Image Analysis | Clemex

NIKON MICROSCOPES

We integrate quality stereo, upright, and inverted Nikon microscopes.



Custom Image Analysis | Clemex

LEICA MICROSCOPES

We integrate quality stereo, upright, and inverted Leica microscopes.



Custom Image Analysis | Clemex

MICROSCOPE STAGES

Märzhäuser-Wetzlar stages, controllers and joysticks work with many different brands of microscopes.



Custom Image Analysis | Clemex

CUSTOM STAGE ACCESSORIES

We design and manufacture a wide range of sample holders and stage adapters, produced to meet any customer specifications.



Custom Image Analysis | Clemex

STAGE MICROMETER

The Clemex stage micrometer for automatic calibration and shading correction; comes with a NIST traceable certificate.



Custom Image Analysis | Clemex

DOWNLOAD OUR BROCHURE
