SCIENTIFIC
IMAGE ACQUISITION

Clemex Captiva is the ideal product for laboratories seeking a robust out-of-the-box solution for simple applications requiring image capture, quantification and nondestructive annotations.

TYPES OF
ANALYSIS

Streamline your manual measurement process: automate image acquisition and perform a series of manual measurements to produce real-time data and graphs.

THREAD ANALYSIS

WELD ANALYSIS

OBJECT MEASUREMENTS

Types of measurements

Angles
Arc Length
Area
Aspect Ratio
Diameter
Length
Orientation
Perimeter
Radius
Roughness
Sphericity
Width

KEY
FEATURES

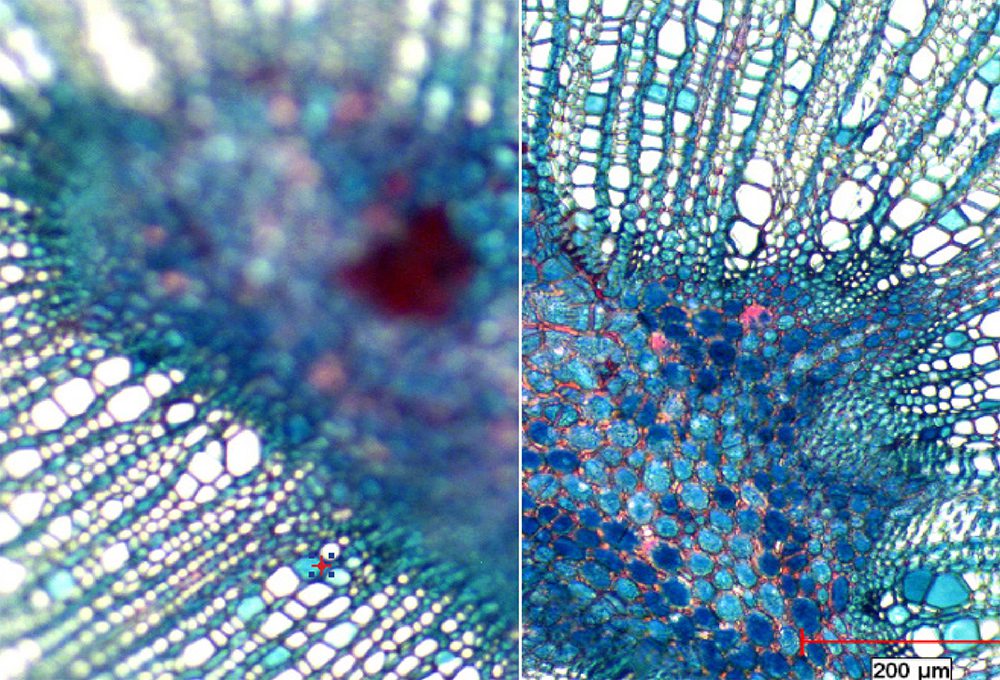

EXTENDED DEPTH OF FIELD

The Multi-Layer Grab feature allows you to work on a sharp composite image of an uneven surface, made up of several image captured at various Z-intervals.

IMAGE STITCHING

Whether you have a motorized or manual stage, the mosaic feature seamlessly stitches multiple fields to form one composite image that can then be analyzed as a whole.

CAMERA CONTROL

Invert an image (in X or Y), adjust exposure time, gain, gamma, and saturation directly from within the software. Save and lock multiple camera settings and reuse them for specific sample types.

DIRECT MEASUREMENTS

Live or stored images can be analyzed using manual measurements. Cumulative object measures from several fields are immediately updated in the data viewer and results graphs.

SAVE CALIBRATED IMAGES

Save calibrated images with dynamic variables such as auto-numbering, sample name, date or customer ID. Direct measurements and annotations can be saved on the image as a separate layer.

MORE FEATURES

CENTERING TOOL
Allows you to keep desired features in the center of the image field when switching magnification.

CUSTOMIZABLE SCALE LINE
Scale lines automatically display the correct reference length based on the chosen magnification.

IMAGE OPTIMIZATION
Shading correction, auto-exposure, white balance, auto-focus, parfocality and paraxiality for each magnification.

GENERATE REPORTS (OPTIONAL)
Logos, images, and results can be directly inserted from the software into a customized report template.

NIST-TRACEABLE CALIBRATION
Eliminate operator subjectivity by automatically calibrating each lens using a NIST-traceable micrometer.

OUTLINE OF SAMPLE HOLDER
Position stage patterns with precision using an outline image of the sample holder.

RUN MODE
Capture and save a series of images with or without a pause for annotations or direct measures.

VIRTUAL JOYSTICK
The virtual joystick allows you to move the stage in all directions, focus manually, or trigger auto-focus events.

PRODUCT
DETAILS

Typically an upright microscope, a motorized stage, and a high-resolution camera are selected to fit your specific image analysis needs. We ensure a seamless integration of all components.
