Grain Size in Ferritic Steel

One ferritic stainless steel image is submitted for analysis.

Grain size in ferritic steel | Clemex

Figure 1. Original image at 100X.

Grain size in ferritic steel | Clemex

Figure 2. Grain boundary is segmented using the Ferrite-Pearlite instruction prior to measurement.

PURPOSE

Demonstrate the ability of the Ferrite-Pearlite tool in Clemex Vision PE to measure grain size in ferritic steel. The methods and operations used are discussed in the report linked at the bottom of this page (click the Download PDF link below).

Grain size in ferritic steel | Clemex

RESULTS

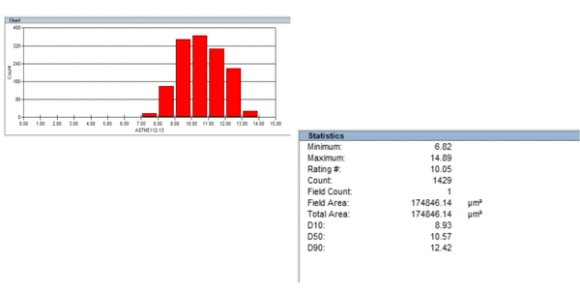

ASTM E 112 grain size measurements are performed. Results are cumulated for automated statistics and graph generation. Final results can be printed directly from Clemex Vision. Raw data are linked to their respective objects and can be exported in Excel format.
