Grain Size in Medium-Carbon Steel

One medium-carbon steel image is submitted for analysis. The absence of clear grain boundaries of the pearlitic-ferritic microsctructure with both dark and light phases make traditional thresholding difficult.  A machine-learning algorithm specially developed for pearlitic steel allows a reliable one-step detection.

Figure 1. Image of pearlitic stainless steel at 100X.

Figure 2. Grain boundary is detected using the Ferrite-pearlite algorithm prior to measurement.

CLEMEX SOLUTION FOR PEARLITIC-FERRITIC GRAINS

Reproducible detection and measurement of grain size as per ASTM E112 was performed using Clemex Vision image analysis software calibrated with a NIST-traceable stage micrometer.

RESULTS

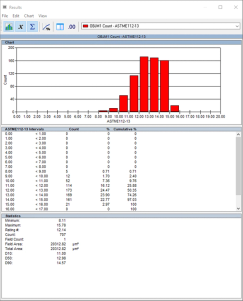

ASTM E112 grain size measurements are performed. Results are cumulated for automated statistics and graph generation. Final results can be printed directly from Clemex Vision. Raw data are linked to their respective objects and can be exported in Excel format.
