Grain size analysis in stainless steel

In this example, Clemex Vision system is selected to measure the grain size of stainless steel.

Grain size in stainless steel | Clemex

Figure 1. Original image at 100X.

Grain size in stainless steel | Clemex

Figure 2. Outline view of grains binarized in red prior to measurement.

PURPOSE

Demonstrate the ability of the Clemex Vision image image analyzer to discriminate, separate and measure grains. The methods and operations used are discussed in the report linked at the bottom of this page (click the Download PDF link below).

Grain size in stainless steel | Clemex

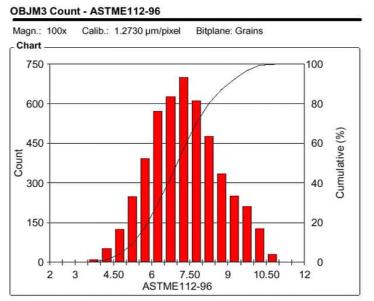

RESULTS

ASTM E 112 grain size measurements are performed. Results are cumulated for automated statistics and graph generation. Final results can be printed directly from Clemex Vision. Raw data are linked to their respective objects and can be exported in Excel format. No difficulties were encountered in analyzing grains without twins. Twinned grains were analyzed using a semi-automatic process based on the Heyn method.
